40kg/hr Floor Standing Large Dehumidifying Capacity Industrial Dehumidifier

Quick Details

• Condition: New
• Type: Dehumidifier
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: Oulun
• Model Number: CFZ-40s
• Voltage: 380/50,380v 50hz
• Power(W): 22000
• Dimension(L*W*H): 25.6*72.8*82.7
• Weight: 450
• Dehumidifier Rated Power: 22kw
• Max Input Current: 33.5A
• Weight(N.W): 450kg
• Dehumidifier color: White
• Dehumidify capacity: 40kg/hr

Packaging & Delivery

Packaging Details:	dehumidifier are Packed by plywood case the dimension: 600*1850*2100mm 20" container can hold at least 11sets of Industrial Dehumidifier 40"container can hold at least 23sets of Industrial Dehumidifier
Delivery Detail:	28 days after the payment

Specifications

Dehumidifier features:
Non-cfc refrigerant
LCD Display
Failure Display
Filter to prevent dusty,Three min compressor pretect

Welcome to Hangzhou Oulun Electrical Co.,LTD

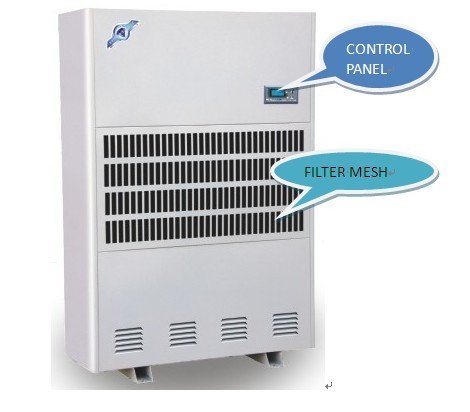

1.The Pic of 40kg/hr Floor Standing Large Dehumidifying Capacity Industrial Dehumidifier

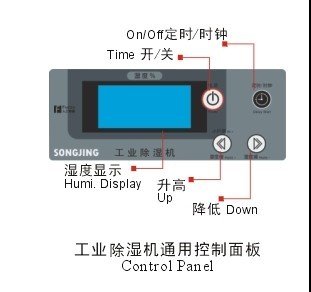

The control panel of dehumidifier cfz-40s

The details of dehumidifier cfz-40s

2.The Function and feature of dehumidifier cfz-40s

♦ LCD Display

♦ Failure Code Display

♦ Humidity Set At Will

♦ Three-Minute Automatic Delay Protection of the Compressor

3.The principle of the dehumidifier cfz-40s

(1% Humidity Exact Control by computer, humidity LCD Display)

With mature technique, Oulun Commercial dehumidifier adopt refrigeration principle to dehumidify air.

International Brand Compressor with high Energy-Efficient, Large Air Circulation with External Rotor Fan

Great Structure, Strong Dehumidify Ability, Automatic Control and Convenient Operation.

4.The parameter of the dehumidifier cf-40s

Mode	CFZ-40/s
Dehumidify Capacity	40kg/h
Voltage	380V/50HZ
Rated Input Power	22kw
Air Circulation Volume	11200m3/h
Applying Area(about) (with 3 meters Height)	1000~1300m2
Noise	≤60dB(A)
Working Environment Temperature	5~38
Humidity Control Range	40%~90%±5%
N.W/G.W	450kg/480kg
Machine Dimension	650*1850*2100mm

5. Warn and notice of the dehumidifier cfz-40s

♦ The dehumidifier adopts microcomputer control, and humidity sensor is precision instrument, and it would result into the equipment out of use in the strong corrosive gas and heavy dust environment (the warranty time of humidity sensor would be in half year).

♦ Please read this booklet carefully when using this microcomputer dehumidifier, forbidden to operate without the demand and switch control at random, which avoid damage the computer control components.

♦ This machine not equipped with anti-explosion function, so forbidden to use it in special environment with things such as: flammability and flammable gas, dust, chemical products and biology products.

♦ The power connected to this machine must connect to the earth and alternating current of 220v/50hz (the CFZ series with 380v/50hz), the power cord should in accordance with power, the rated current should be set according to the user manual.

♦ To maintain the machine regularly, let the machine take a rest after long-time operation.

♦ If they are any difference between the picture in this catalog and the real machine, please subject to the real machine.

6.Notice:

♦ Should be used on solid flat ground to avoid the noise created by machine shake.

♦ Check the voltage and machine is consistent, not using a common socket with other electrical appliance.

♦ Do not place machine near a heat source, to avoid increasing power or accident.

♦ Moving or handling the machine, do not let machine 45 tilt.

♦ The dehumidifier would frost or frozen when the machine runs less than the temperature of 18 c, if the machine owns defrost function, then, it would automatic defrost, unless necessary, do not run it under low temperature.

♦ Reservations using this machine should be noted that not less than50cm-100cm around the room.

♦ When continuously drainage, please handle the external drainage assembly correctly.

♦ For the different structure of conditioner, when it runs in a small room, the temperature would rise slightly.

I ♦ n better ventilation place, the dehumidify effect would not so significantly.

♦ In the low temperature and low humidity condition, the dehumidify capacity would reduce or not dehumidify, which are considered normal (the ambient temperature<10c, humidity<45%).

7.Machine in Trouble

♦ Unplug immediately

♦ Troubleshooting according to the manual

♦ If you cannot exclude the trouble according to the manual, please contact the wholesaler or factory directly.

8. The application of the machine

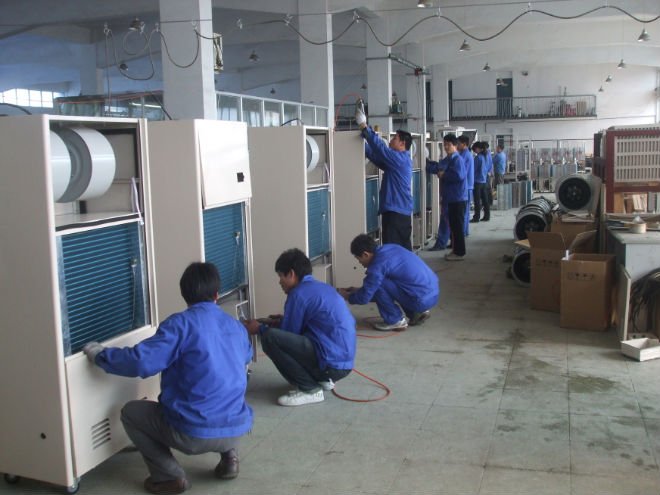

9.The Production Line

10.Our factory:

Oulun Electric is one of the leading 40kg/hr floor standing large dehumidifying capacity industrial dehumidifier manufacturers and suppliers in China who can offer you the best service and timely delivery. Should you have any preference for our products, welcome to wholesale the precise 40kg/hr floor standing large dehumidifying capacity industrial dehumidifier from our factory.
