138L/D Hot-damp Moisture Absorber Dehumidifier

Quick Details

• Condition: New
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: Oulun
• Model Number: SJ-1381E
• Voltage: 220
• Power(W): 2000
• Dimension(L*W*H): 18.9*16.5*37.8
• Weight: 49
• Warranty: 1 year
• After-sales Service Provided: Engineers available to service machinery overseas
• Dehumidifier rated power: 2000w
• Max input current: 9A
• Weight(N.W/G.W): 49kg
• Dehumidifier Color: White
• Dehumidity capacity: 138L
• Applying Area: 130-150㎡

Packaging & Delivery

Packaging Details:	Dehumidifier is Packed by Special Export Package 20" container can hold at least144 sets of dehumidifier 40" container can hold at least 300sets of dehumidifier The dimension: 480*420*1085mm
Delivery Detail:	20 days after the payment

Specifications

138L/D Hot-damp Moisture Absorber
1)Dehumidify capacity: 138L/D
2)Rotation Compressor
3)Automatic Defrost
4)Wheels

Welcome to Hangzhou Oulun Electrical Co.,LTD

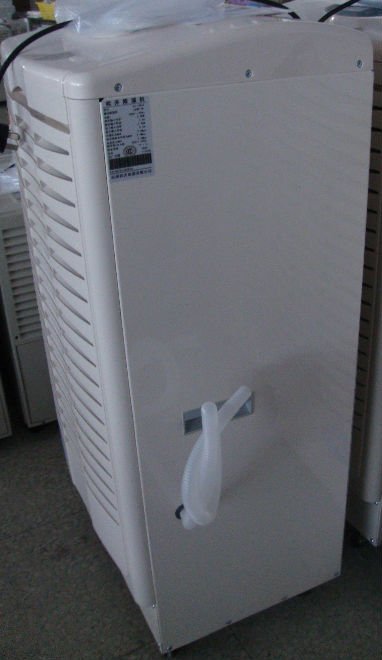

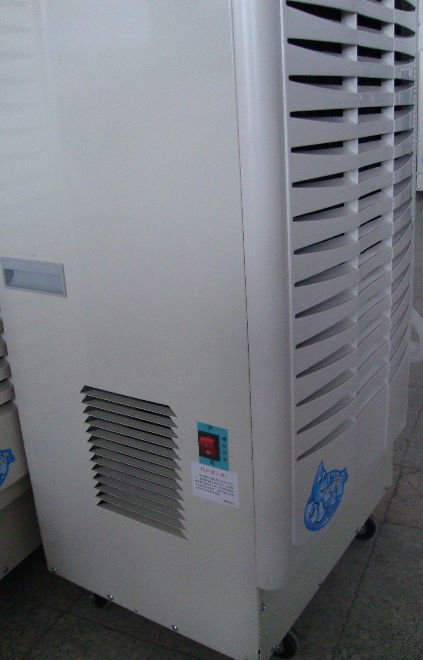

1.The Pic of 138L/D Hot-damp Moisture Absorber Dehumidifier

The Control Panel

Tube for Permanent Drainage

The Emergency Button

e

2.Dehumidifier parameter:

Project Mode	SJ-1381E
Power Supply	220V/50HZ
Rated Input Power	2000w
Rated Input Current	9A
Weight(N.W/G.W)	57/63kg
Applying Area(with three meters height)	120~124m2
Dehumidify Capacity	138L/D
Environment Temperature	5~38 celsius

3.Dehumidifier Main Features:

• (Humidity Exact Control by Computer, Display Temperature)

• International top Brand Rotary Compressor

• Three-Minute Automatic Delay Protection of the Compressor

• Keep Mute, Time and Energy Saving

• Universal Wheel soles that can Move Conveniently

• It is elegant with Plastic-steel Shell

4.Dehumidifier Main Functions:

• Micro-computer Control, LCD Display
• Automatic frost thawing, Normal use under low, about 5^oC
• Adjust among High air Velocity and Low air velocity
• Input Active Carbon Filter Mesh
• Dehumidifier controlled by 5 Models, Saving energy
• Super refrigerator or Outer connection of the tube can achieve consecutive water drainage

5.The Application Area of 138L/D Hot-damp Moisture Absorber Dehumidifier

Dehumidifier of our company own such advantages of nice appearance, compact structure and easy operation. It is widely applied to research and medical products, commodity storage, underground project, kitchen, bathroom, archives, and warehouse for dehumidification. With this dehumidifier, loss caused by damp, erosion and corrosion of apparatuses and instruments can be prevented.

6.Warn:

♦ The dehumidifier adopts microcomputer control, and humidity sensor is precision instrument, and it would result into the

equipment out of use in the strong corrosive gas and heavy dust environment (the warranty time of humidity sensor would be in half year).

♦ Please read this booklet carefully when using this microcomputer dehumidifier, forbidden to operate without the demanand switch control at random, which avoid damage the computer control components.

♦ This machine not equipped with anti-explosion function, so forbidden to use it in special environment with things such as: flammability and flammable gas, dust, chemical products and biology products.

♦ The power connected to this machine must connect to the earth and alternating current of 220v/50hz (the CFZ series with 380v/50hz), the power cord should in accordance with power, the rated current should be set according to the user manual.

♦ To maintain the machine regularly, let the machine take a rest after long-time operation.

♦ If they are any difference between the picture in this catalog and the real machine, please subject to the real machine.

7.Notice:

♦ Should be used on solid flat ground to avoid the noise created by machine shake.

♦ Check the voltage and machine is consistent, not using a common socket with other electrical appliance.

♦ Do not place machine near a heat source, to avoid increasing power or accident.

♦ Moving or handling the machine, do not let machine 45 tilt.

♦ The dehumidifier would frost or frozen when the machine runs less than the temperature of 18 c, if the machine owns defrost function, then, it would automatic defrost, unless necessary, do not run it under low temperature.

♦ Reservations using this machine should be noted that not less than50cm-100cm around the room

When continuously drainage, please handle the external drainage assembly correctly.

♦ For the different structure of conditioner, when it runs in a small room, the temperature would rise slightly.

I♦ in better ventilation place, the dehumidify effect would not so significantly).

♦ In the low temperature and low humidity condition, the dehumidify capacity would reduce or not dehumidify, which are considered normal (the ambient temperature<10c, humidity<45%).

8.Machine in Trouble

♦ Unplug immediately

♦ Troubleshooting according to the manual

♦ If cannot exclude the trouble according to the manual, please contact the wholesaler or factory directly.

9.The application:

10.The Assembly Line :

11.Our Workshop

Oulun Electric is one of the leading 138l/d hot-damp moisture absorber dehumidifier manufacturers and suppliers in China who can offer you the best service and timely delivery. Should you have any preference for our products, welcome to wholesale the precise 138l/d hot-damp moisture absorber dehumidifier from our factory.
